Adrian Pau's Great Alaskan in Gresham, Oregon

[Brian.Dixon]

Hi,

Post this for Adrian Pau of Gresham, Oregon:

  Slideshow link

I think the pictures are more or less in reverse order, so start and the end and work back.

Brian

[Brian.Dixon]

If you would prefer viewing Adrian's gallery without the slide show, here's the link for the gallery instead:

  Gallery link

  (Includes video)

Brian

[Brian.Dixon]

Project update:  Bottom, stem, and transom now installed.

March update

Brian

[arthor]

Am I being a bit thick here or are those chine flats being installed and then trimmed?? I didn't get the impression that was the book way.
Is it easier??
Look forward to some more pics of that beauty. She seems to be going along nicely

arthor

[Brian.Dixon]

The chine flats are left wide at the bow until after the chine flat-to-bottom panel seam is built and cured.  I recommend marking the outer cut line with a Sharpie so you can see it through the glass.  You use a jig saw to finish cutting the fine taper to the bow after the chine has been installed.  Why do it this way?  When building the seam, it's nice to have enough material along the entire chine's length to clap to a straight edge across the boat.  By clamping it up, building the seam, and then finishing the forward cut after the fact, it's easier to guarantee that you have a nice clean, flat, chine installation from stem to stern.  It's actually easier this way and there's no risk of breakage or warping towards the bow as you install the chine flat.  Trying it out probably makes it more obvious than an explanation though...

Brian

[arthor]

Makes plenty of sense to me.

[Brian.Dixon]

Update for April 14th, 2010:  Adrian now has the primary hull constructed and will soon be flipping the boat upright ...stay tuned!

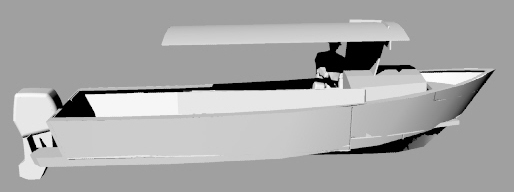

A rendering of the basic concept behind what Adrian is building.  Note that addition of an extended motor bracket and sponsons w/swim step


Starboard side.  Note that the side panels still extend past the sheer deck at this point and will be trimmed later.  Also notice the "straight edges" (2x6's) temporarily screwed to the aft chine flats to guarantee a straight run aft.

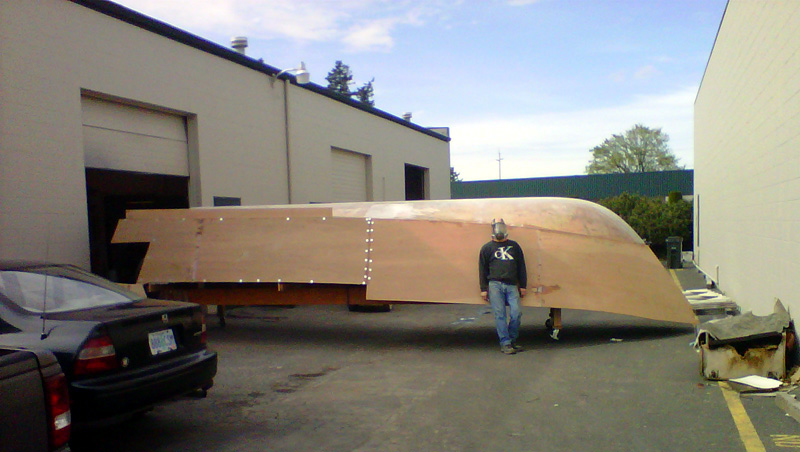

Port side.  Notice side panel scarfs accomplished in-place (screws with washers)

Enjoy!  Adrian is on track for a Summer 2010 launch!

Brian

[Ed Snyder]

You got Herb, his wife and I chomping at the bit now! Shes a race! In the tide by Dec 2010!
Nice job too. Post more pix, I will do the same here.

[arthor]

incredibly inspiring. Great job. Can't wait to see the end result.
